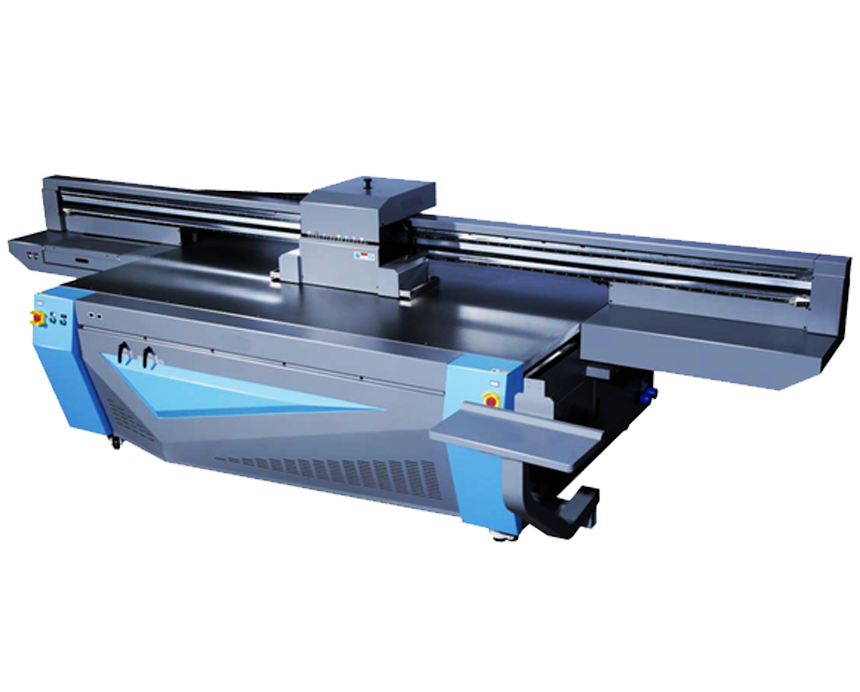

THUNDERSTORM-G5 UV Flatbed Printer

*Tax & shipping cost extra as applicable

Print Sizes Available 4x8Feet/5x10Feet/7x10Feet.
Powered by Industrial Grade Ricoh Gen5 Print Heads.
Compatible with all UV Printing Inks.
Long Life & Production level Print Head of the Industry.
CMYK+CMYK, CMYK+W or CMYK+W+V Options Available.
Water-cooled Led UV Lamps for longest life.
Lowest Power Consumption then Conventional Lamps.
Panasonic AC Servo motors and drives from Japan.
THK Linear Rail & Guide for Super Silent Printing.
Steel Negative Pressure Tanks with Heating System.
Anti-Collision System For preventing Head Damages.

Print head Ricoh Gen5 Industrial Print heads 2 Head 4 Heads
Printing Speed  4 pass 40㎡/h 80㎡/h
(Without W & V) 6 pass 34㎡/h 68㎡/h
8 pass 20㎡/h 40㎡/h
12 pass 13㎡/h 26㎡/h
Printing Width 2500x1300mm
Ink type UV Curable Ink
Color C M Y K + White + varnish
Maximum Thickness 80mm
Print Media Pvc boards, Tiles, Glass, Signboards, Mobile case, Wood etc
Curing System LED UV water cooled curing system
Software Maintop/ Photo print/ Caldera/(Optional)
Interface USB Connectivity
Voltage 208 – 220 VAC 50/60 Hz 30A, Single Phase, Single Plug
Working Environment Temperature 20-28℃ Humidity 40-70%
Assembled Machine Size (LxWxH) 180″ x 80″ x 60″ (458 x 205 x 153 cm)
Shipping Packing Size (LxWxH) 209″ x 90″ x 75″ (531 x 230 x 191 cm)
Shipping Weight 3422 lb (1552 Kg)
Assembled Weight 2650 lb (1202 Kg)



Can Print Glass, Acrylic, Wooden, Ceramic Tiles, Metal Sheets, PVC Boards, Foam Boards & 3D Products etc.

Optional & add-ons:

  • ONYX rip software
